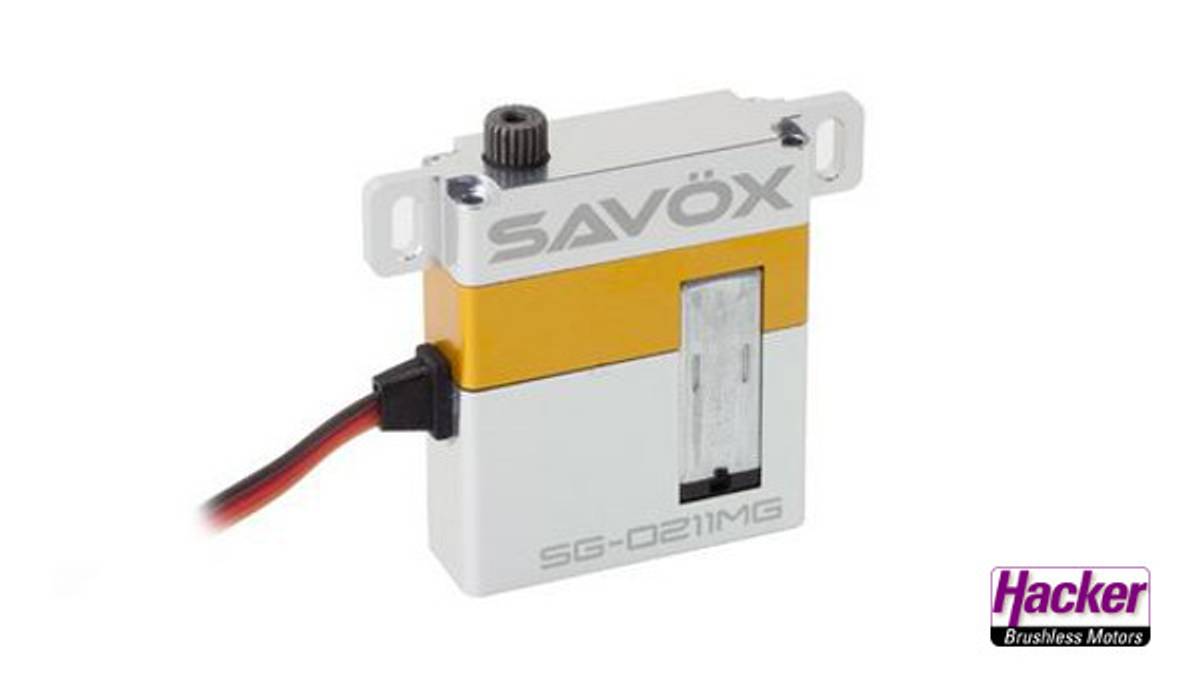

Savöx SG-0211MG

SAVÖX SG-0211MG Servo

- Slim 10mm surface servo
- Application examples: Planes

- Full aluminum housing, thus ideal heat dissipation
- 8kg torque at 6V
- 0,13s actuating time at 6V

With only 10mm depth the new SAVÖX SG-0211MG is ideal for installation in narrow wings of Gliders or Speed models. The high-quality full-aluminum housing with 3 Attachment points, can be mounted precisely and ensures good heat dissipation. To ensure the highest possible precision control of your model, was a Backlash-free, double-ball bearing gear installed. Despite its torque of 8.0 kg at 6V is this little powerhouse with 29 grams not a heavyweight. To simplify assembly, each servo is a stable mounting frame. A specially adapted for the needs in the surface model Servohebel completes the package.

technical Datas:
Voltage range (volts): 4.8 to 6.0
Operating time @ 6.0V / 60 ° (sec): 0.13
Operating time @ 4.8V / 60 ° (sec): 0.16
Force @ 6.0V (kg): 8.0
Force @ 4.8V (kg): 6.0
Width (mm): 10.0
Length (mm): 30.0
Height (mm): 36.0
Weight (g): 29.0
Ball Bearings (Number): 2
Output teeth (number): 21
Motor type: coreless motor
Gear Type: Metal
Housing: full metal
High voltage: No
