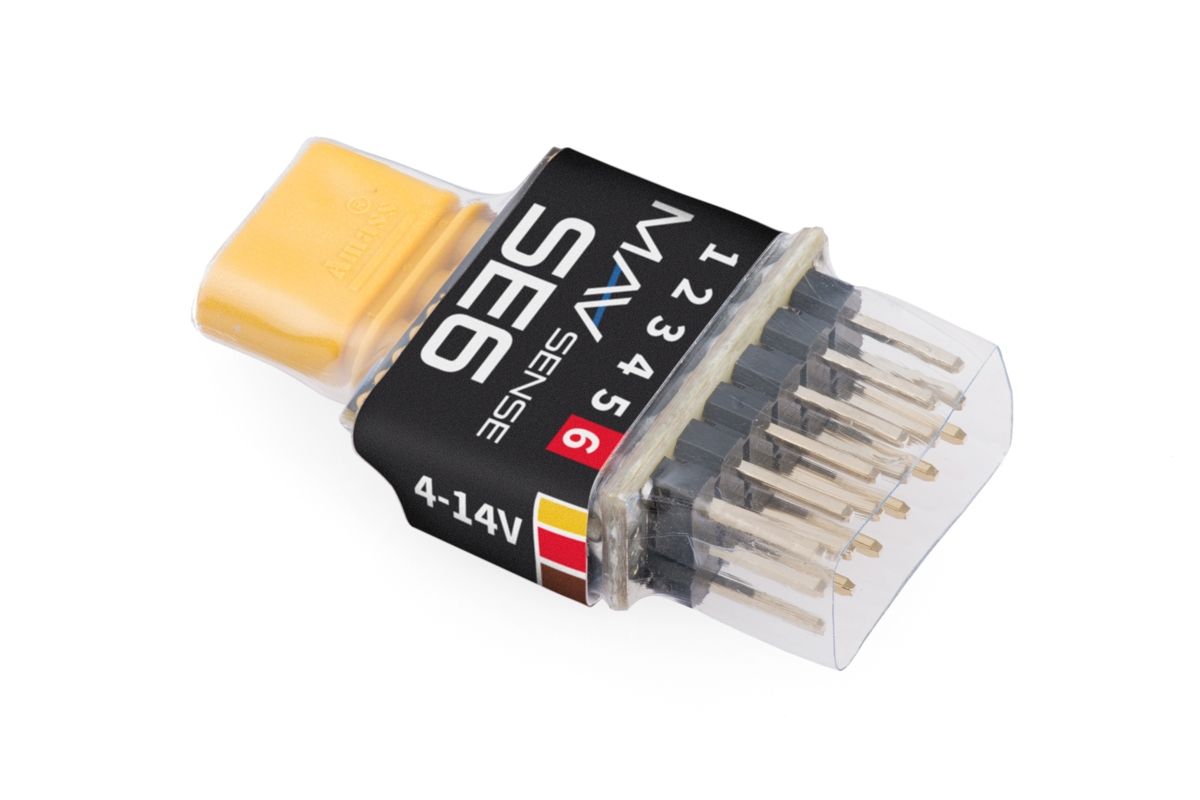

MAV Sense SE6

Miniature 6-channel servo expander/serial bus decoder converting the serial bus signal to individual PWM servo outputs. Compatible serial protocols: Futaba S.BUS/S.BUS2, Graupner SUMD, HoTT telemetry, JETI EX Bus, Multiplex SRXL 12/16CH, PowerBox P2Bus; assignable outputs. Input voltage 5-8.4V, current drain up to 15A. Dimensions 34x19x8mm, weight 4.5g, input connector MR30. Adjustable with transmitters, Jetibox or MAV Sense PC USB interface.

The Servo Expander SE6 is a device that converts serial bus signal to standard PWM servo outputs. It offers up to six configurable servo outputs with optional period and fail-safe setting. The SE4 is a perfect choice for models with complex wing or tail mechanics where multiple servos may be connected to a primary receiver using just a single cable.

MAV Sense products are designed and manufactured in the Czech Republic

Supported protocols:

• Futaba: S.Bus/S.Bus2
• Graupner: SUMD, Hott telemetry for setting
• JETI: EX Bus
• Multiplex: SRXL 12ch, SRXL 16ch
• PowerBox: P2Bus

Features

• Small dimensions and high current throughput via the integrated MR30 power connector.
• 6-channel servo/EX Bus sensor expander.
• Automatic detection of serial data/telemetry after startup.
• Configuration through the transmitter, external terminal (JETIBOX/SMART-BOX) or MAV Manager PC software.v
• Firmware updates via USB interface.

The set contents: SE6 Servo Expander, instruction manual.
