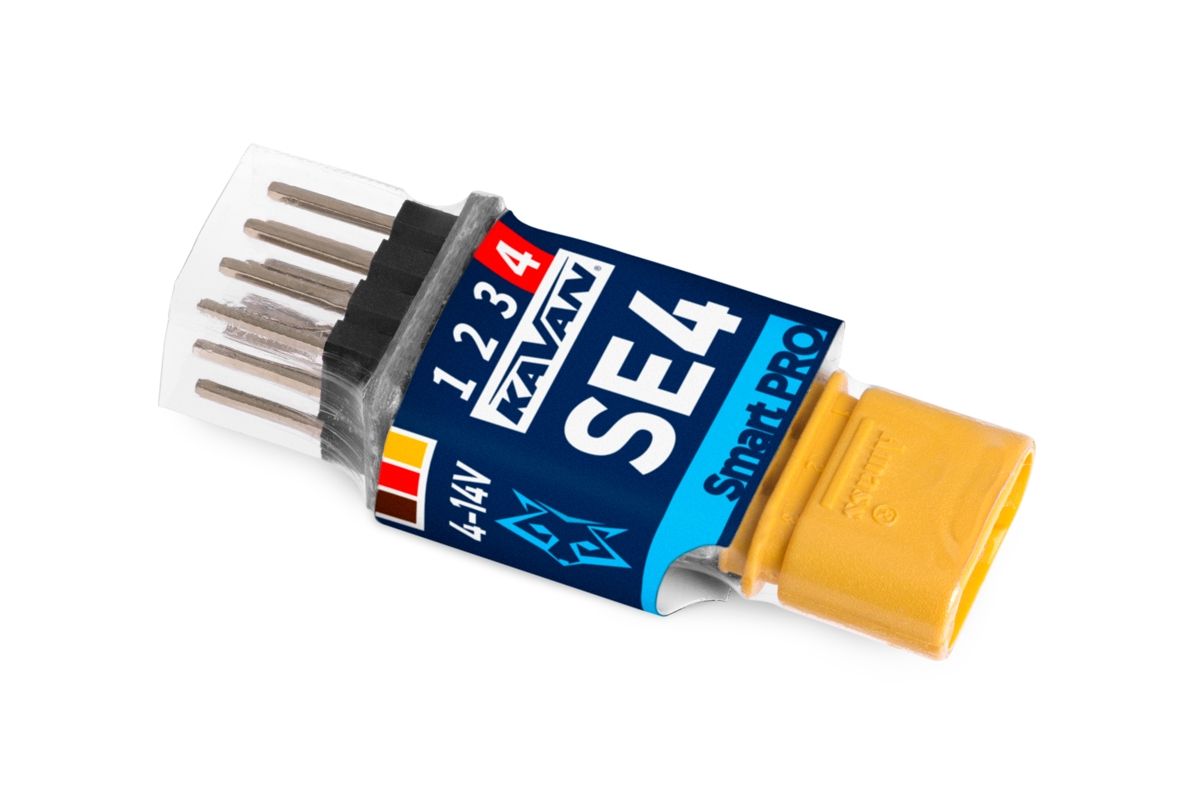

Kavan Smart PRO SE4 4ch BUS servo decoder

Miniature 4-channel servo expander/serial bus decoder converting the serial bus signal to individual PWM servo outputs. Compatible serial protocols: KAVAN/FrSky FPort, Futaba S.BUS/S.BUS2, Graupner SUMD, HoTT telemetry, JETI EX Bus, Multiplex SRXL 12/16CH, PowerBox P2Bus; assignable outputs. Input voltage 5–8.4 V, current drain up to 15 A. Dimensions 34×14×9 mm, weight 4 g, input connector MR30. Adjustable with transmitters, Jetibox or KAVAN/MAV Sense PC USB interface.

KAVAN Smart PRO SE4 is a device that converts serial bus signals to standard PWM servo outputs. It offers up to four configurable servo outputs with optional period and fail-safe settings. The SE4 is a perfect choice for models with complex wing or tail mechanics where multiple servos may be connected to a primary receiver using just a single cable.

Supported protocols:

• FrSky/KAVAN FPort, JETI Duplex EX, Graupner Hott, Multiplex MSB, Futaba S.Bus2, PowerBox P²Bus

Features

• Small dimensions and high current throughput via the integrated MR30 power connector.
• 4-channel servo/EX Bus sensor expander.
• Automatic detection of serial data/telemetry after startup.
• Configuration through the transmitter, external terminal (JETIBOX/SMART-BOX) or MAV Manager PC software.
• Firmware updates via USB interface.

The set contents: SE4 Servo decoder/expander, instruction manual.

KAVAN Smart PRO SE4 4ch BUS servo decoder is manufactured in Czechia by the company MAV Sense s.r.o.

Online instruction manual: wiki.kavanrc.com
