Description:
A60-5S V4 28-Pole
The 8S Powermotor for 2m 3D Planes!
With the new V4 version we bring our popular A60 motors to a new level.
A new designed cooling-fan for better cooling, and new larger ball bearings make the
A60 Outrunner motors more efficient and robust in daily operation.

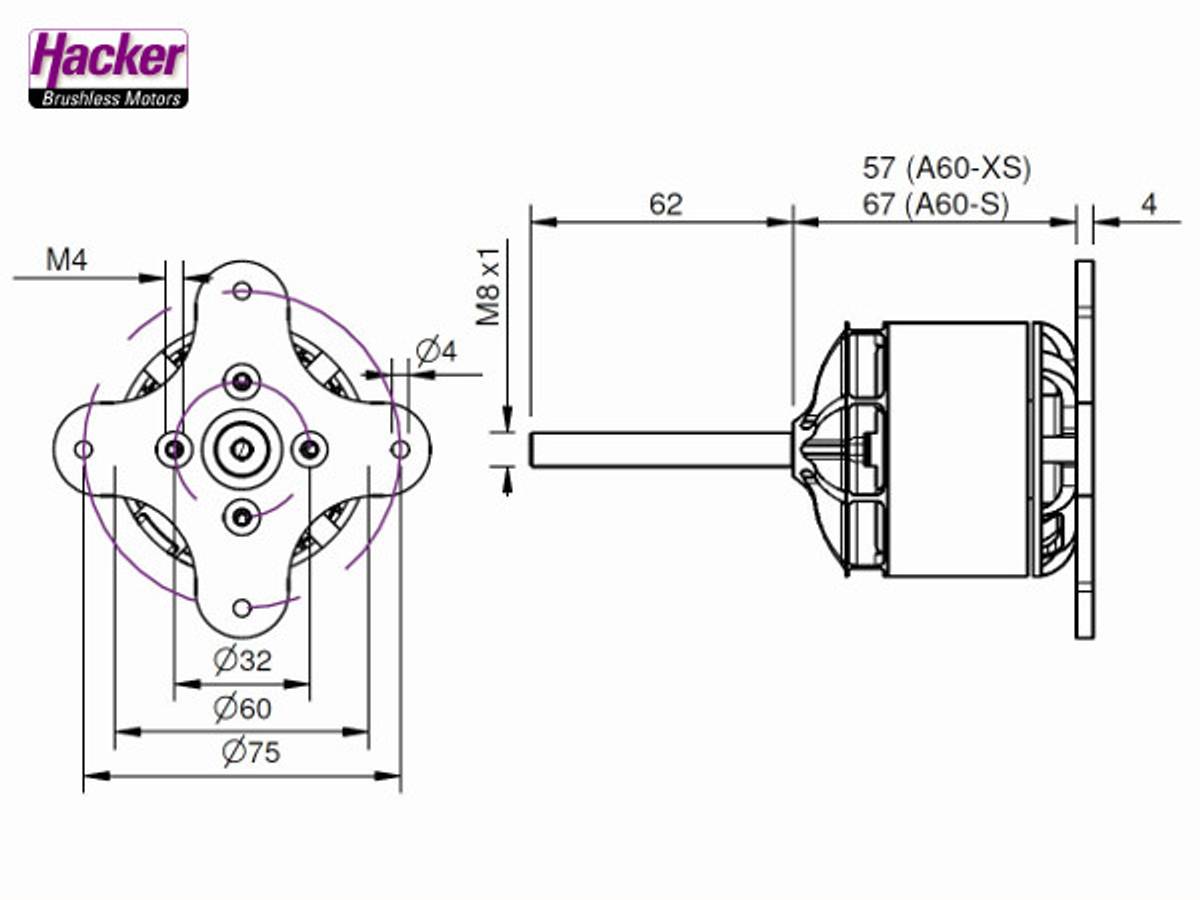

The A60-XS and A60-S series are designed only for Backmount Assembly. The A60-M and A60-L series
can built in as a front mount, or with the optional motormount and a supportbearing the motors can
also be backmounted.
Technical Data:
| Powerrange | max. 2400W (15 sec.) | |
| Idle Current at 8,4V | 1,7A | |
| Resistance | 0,015 Ohm | |
| RPM / Volt | 295 U/min-1 | |
| Weight | 595g | |
| Diameter | 60 mm | |
| Length | 65,5 mm | |
| Type | 28-Pole | |
| recommended Timing: | 25° | |
| Switching Frequency | 8 kHz | |
| recommended Prop | at 8S Lipo XOAR 21x10 (~85A) |
